Stinger

Rotary Lock Traveling Valve

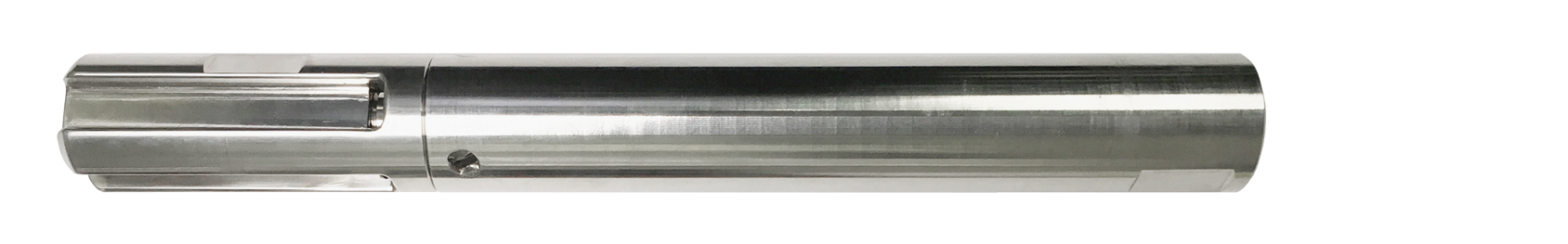

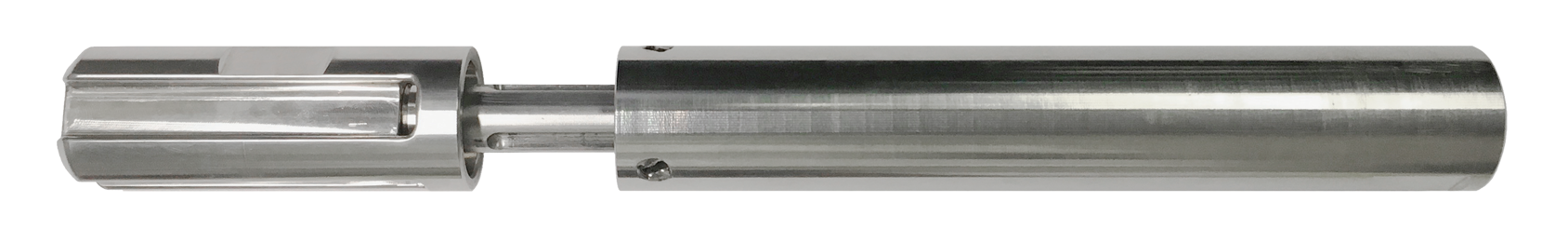

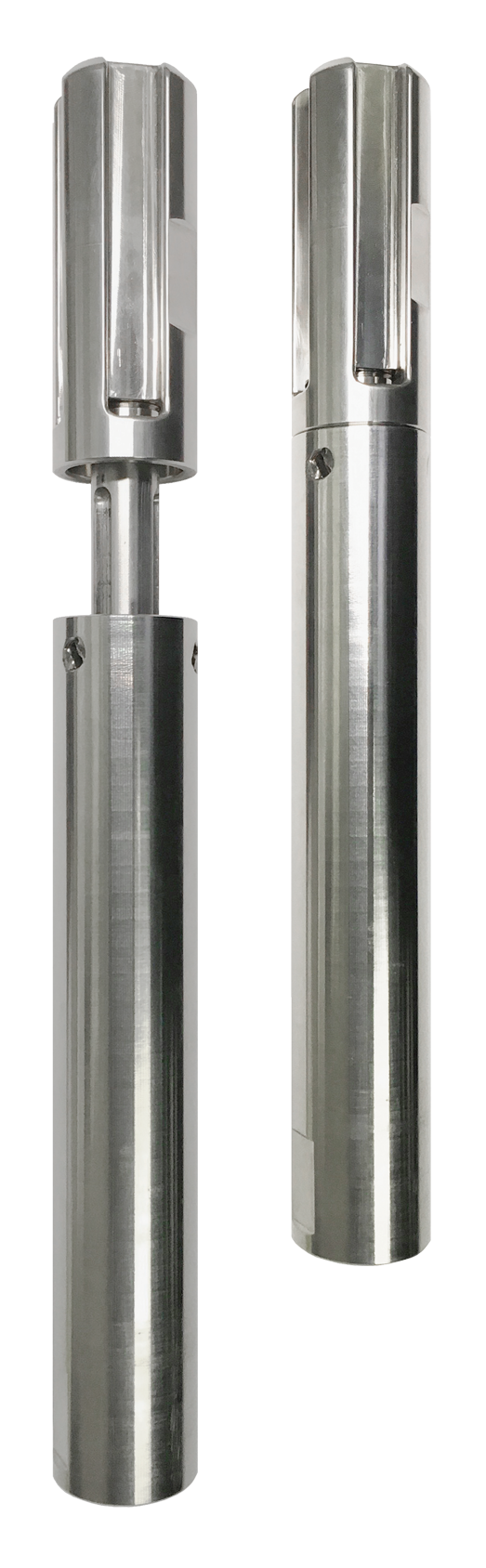

The Stinger is a rotary lock traveling valve used in artificial lift wells which utilizes rod pump configurations. Replacing the traditional ball and seat traveling valve, the Stinger's upper threads connect directly to the valve rod, and the lower threads interface with standard plungers. With a main body of 17–4 stainless steel, the Stinger’s engineered rotary locking action prevents high bottom pressure and prevents loss of fluid recovery by locking open on down stroke. In addition, it can reduce operation and well servicing costs while increasing production.

Design features

  • Main Body
  • 17-4 Stainless Steel
  • Inconel upgrade available for high H2S application
  • Internal Rotating Assembly
  • Rod Gearing Mechanism - 17-4 Stainless Steel
  • Seat and Rotary Surface - Laser clad anti-friction coating
  • Ball Bearings - Ceramic
  • Spring - Elgiloy rated 454°F

Benefits

Eliminates all gas lock
Increases production
Allows pumping under extreme bottom pressure without loss of fluid efficiency
Reduces operation and well servicing costs
Oversized internal ports allow solids to pass through valve
Reduces fluid pound

Fluid Efficiency Advantages

Engineered rotary locking action prevents high bottom pressure blow-by on upstroke
No ball displacement due to high bottom pressure
Prevents loss of fluid recovery by locking open on down stroke
